ASTROMETRIC UPDATE:
OCCULTATION BY (105) ARTEMIS - 2019 Sep 02

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2019 JUL 21, 05:06 UT

Event Rank : 99

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

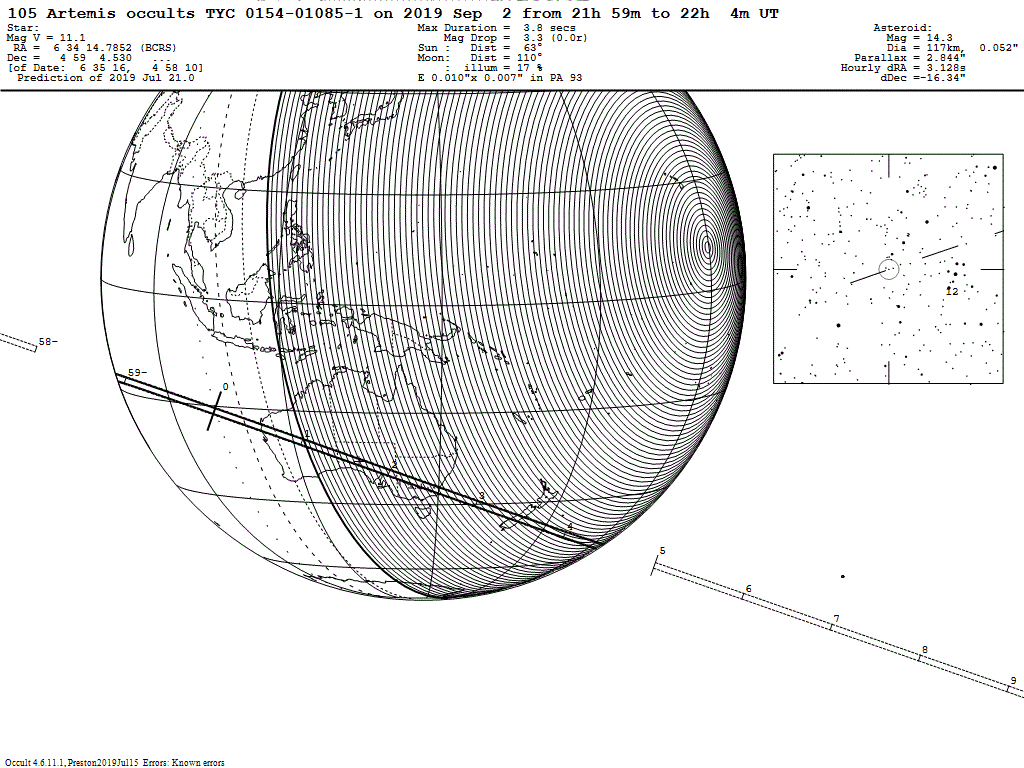

Artemis Update Map


On 2019 Sep 02 UT, the 117 km diameter asteroid (105) Artemis will occult a 11.1 mag star in the constellation Monoceros for observers along a path across central Western Australia from north of Carnarvon towards central South Australia in evening twilight.

In the case of an occultation, the combined light of the asteroid and the star will drop by 3.27 mag to 14.26 mag (the magnitude of the asteroid) for at most 3.8 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Hugh Harris, astrometry for the asteroid kindly provided by Bill Owen, astrometry for the asteroid kindly provided by the IAU Minor Planet Center.

This work has made use of data from the European Space Agency (ESA) mission Gaia (http://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, http://www.cosmos.esa.int/web/gaia/dpac/consortium). Funding for the DPAC has been provided by national institutions, in particular the institutions participating in the Gaia Multilateral Agreement.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                   Centre              Star  Star   Sun      Path Limits           Error Limits       Alt
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4   Crn
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
    110  0  0   -22 46 29   22  0 22    45    57   -12  -23 28 11  -22  5  9  -23 40 15  -21 53 22   0.76
    111  0  0   -23  2 27   22  0 25    45    56   -11  -23 44 14  -22 21  3  -23 56 18  -22  9 14   0.76
    112  0  0   -23 18 45   22  0 28    46    55   -10  -24  0 36  -22 37 17  -24 12 42  -22 25 27   0.76
    113  0  0   -23 35 23   22  0 31    46    54    -9  -24 17 19  -22 53 51  -24 29 26  -22 41 59   0.76

    114  0  0   -23 52 20   22  0 34    47    52    -8  -24 34 21  -23 10 44  -24 46 29  -22 58 51   0.76
    115  0  0   -24  9 37   22  0 37    47    51    -7  -24 51 42  -23 27 56  -25  3 51  -23 16  2   0.76
    116  0  0   -24 27 12   22  0 41    48    50    -7  -25  9 21  -23 45 26  -25 21 32  -23 33 31   0.76
    117  0  0   -24 45  5   22  0 44    48    49    -6  -25 27 19  -24  3 15  -25 39 31  -23 51 19   0.76
    118  0  0   -25  3 16   22  0 47    49    47    -5  -25 45 35  -24 21 22  -25 57 48  -24  9 24   0.76

    119  0  0   -25 21 44   22  0 51    49    46    -4  -26  4  8  -24 39 46  -26 16 23  -24 27 47   0.76
    120  0  0   -25 40 30   22  0 54    50    44    -3  -26 22 58  -24 58 26  -26 35 14  -24 46 27   0.76
    121  0  0   -25 59 31   22  0 57    50    43    -2  -26 42  4  -25 17 24  -26 54 22  -25  5 23   0.76
    122  0  0   -26 18 49   22  1  1    51    41    -1  -27  1 26  -25 36 37  -27 13 45  -25 24 34   0.76
    123  0  0   -26 38 22   22  1  4    51    40     0  -27 21  4  -25 56  5  -27 33 24  -25 44  2   0.76

    124  0  0   -26 58 10   22  1  7    51    38     0  -27 40 56  -26 15 49  -27 53 18  -26  3 44   0.76
    125  0  0   -27 18 12   22  1 11    52    37     1  -28  1  3  -26 35 47  -28 13 26  -26 23 41   0.76
    126  0  0   -27 38 28   22  1 14    52    35     2  -28 21 23  -26 55 59  -28 33 48  -26 43 51   0.76
    127  0  0   -27 58 58   22  1 18    52    33     3  -28 41 57  -27 16 24  -28 54 23  -27  4 16   0.76
    128  0  0   -28 19 40   22  1 21    52    32     4  -29  2 44  -27 37  2  -29 15 11  -27 24 52   0.76

    129  0  0   -28 40 34   22  1 25    52    30     4  -29 23 43  -27 57 52  -29 36 11  -27 45 41   0.76
    130  0  0   -29  1 40   22  1 28    52    28     5  -29 44 53  -28 18 54  -29 57 22  -28  6 42   0.76
    131  0  0   -29 22 58   22  1 31    53    26     6  -30  6 14  -28 40  7  -30 18 45  -28 27 54   0.76
    132  0  0   -29 44 25   22  1 35    53    25     7  -30 27 46  -29  1 31  -30 40 17  -28 49 17   0.76
    133  0  0   -30  6  3   22  1 38    53    23     8  -30 49 27  -29 23  5  -31  2  0  -29 10 49   0.76

    134  0  0   -30 27 49   22  1 42    53    21     8  -31 11 18  -29 44 48  -31 23 52  -29 32 31   0.76
    135  0  0   -30 49 45   22  1 45    53    19     9  -31 33 17  -30  6 39  -31 45 52  -29 54 22   0.76
    136  0  0   -31 11 48   22  1 49    53    18    10  -31 55 24  -30 28 39  -32  8  0  -30 16 20   0.76
    137  0  0   -31 33 59   22  1 52    52    16    11  -32 17 38  -30 50 46  -32 30 15  -30 38 27   0.76
    138  0  0   -31 56 16   22  1 55    52    14    11  -32 39 59  -31 13  0  -32 52 37  -31  0 40   0.76

    139  0  0   -32 18 40   22  1 59    52    12    12  -33  2 26  -31 35 20  -33 15  5  -31 22 59   0.76
    140  0  0   -32 41  9   22  2  2    52    11    13  -33 24 58  -31 57 46  -33 37 38  -31 45 24   0.76
    141  0  0   -33  3 42   22  2  5    52     9    13  -33 47 35  -32 20 17  -34  0 16  -32  7 54   0.76
    142  0  0   -33 26 20   22  2  9    51     7    14  -34 10 16  -32 42 52  -34 22 58  -32 30 29   0.76
    143  0  0   -33 49  2   22  2 12    51     6    15  -34 33  0  -33  5 31  -34 45 43  -32 53  7   0.76

    144  0  0   -34 11 46   22  2 15    51     4    15  -34 55 48  -33 28 13  -35  8 31  -33 15 48   0.76
    145  0  0   -34 34 33   22  2 18    51     2    16  -35 18 37  -33 50 57  -35 31 21  -33 38 31   0.76
    146  0  0   -34 57 22   22  2 22    50     1    17  -35 41 27  -34 13 44  -35 54 12  -34  1 17   0.76
    147  0  0   -35 20 11   22  2 25    50   359    17  -36  4 19  -34 36 31  -36 17  4  -34 24  3   0.76
    148  0  0   -35 43  0   22  2 28    49   358    18  -36 27 10  -34 59 18  -36 39 57  -34 46 51   0.76

    149  0  0   -36  5 50   22  2 31    49   356    19  -36 50  2  -35 22  6  -37  2 48  -35  9 38   0.76
    150  0  0   -36 28 38   22  2 34    49   355    19  -37 12 52  -35 44 53  -37 25 39  -35 32 24   0.76
    151  0  0   -36 51 25   22  2 37    48   353    20  -37 35 40  -36  7 38  -37 48 28  -35 55  9   0.76
    152  0  0   -37 14  9   22  2 40    48   352    20  -37 58 26  -36 30 21  -38 11 14  -36 17 52   0.76
    153  0  0   -37 36 51   22  2 43    47   350    21  -38 21  9  -36 53  2  -38 33 57  -36 40 32   0.76

    154  0  0   -37 59 30   22  2 46    47   349    21  -38 43 48  -37 15 40  -38 56 37  -37  3  9   0.76
    155  0  0   -38 22  4   22  2 49    46   348    22  -39  6 23  -37 38 13  -39 19 12  -37 25 43   0.76
    156  0  0   -38 44 34   22  2 52    45   346    22  -39 28 54  -38  0 43  -39 41 43  -37 48 12   0.76
    157  0  0   -39  6 59   22  2 55    45   345    23  -39 51 19  -38 23  7  -40  4  8  -38 10 36   0.76
    158  0  0   -39 29 18   22  2 57    44   344    23  -40 13 38  -38 45 26  -40 26 27  -38 32 55   0.76

    159  0  0   -39 51 30   22  3  0    44   342    24  -40 35 51  -39  7 38  -40 48 40  -38 55  8   0.76
    160  0  0   -40 13 36   22  3  3    43   341    24  -40 57 57  -39 29 44  -41 10 46  -39 17 14   0.76
    161  0  0   -40 35 35   22  3  5    43   340    25  -41 19 55  -39 51 43  -41 32 44  -39 39 13   0.76
    162  0  0   -40 57 26   22  3  8    42   339    25  -41 41 45  -40 13 35  -41 54 34  -40  1  4   0.76
    163  0  0   -41 19  8   22  3 10    41   337    25  -42  3 27  -40 35 18  -42 16 15  -40 22 48   0.76

    164  0  0   -41 40 42   22  3 13    41   336    26  -42 24 59  -40 56 52  -42 37 48  -40 44 23   0.76
    165  0  0   -42  2  6   22  3 15    40   335    26  -42 46 22  -41 18 18  -42 59 10  -41  5 48   0.76
    166  0  0   -42 23 20   22  3 18    39   334    26  -43  7 36  -41 39 33  -43 20 23  -41 27  4   0.76
    167  0  0   -42 44 25   22  3 20    39   333    27  -43 28 38  -42  0 39  -43 41 26  -41 48 10   0.76
    168  0  0   -43  5 18   22  3 23    38   332    27  -43 49 30  -42 21 34  -44  2 17  -42  9  6   0.76

    169  0  0   -43 26  1   22  3 25    37   331    27  -44 10 11  -42 42 19  -44 22 57  -42 29 51   0.76
    170  0  0   -43 46 32   22  3 27    37   330    28  -44 30 40  -43  2 52  -44 43 26  -42 50 25   0.76
    171  0  0   -44  6 51   22  3 29    36   329    28  -44 50 58  -43 23 13  -45  3 43  -43 10 47   0.76
    172  0  0   -44 26 59   22  3 31    36   328    28  -45 11  2  -43 43 23  -45 23 47  -43 30 57   0.76
    173  0  0   -44 46 53   22  3 33    35   327    28  -45 30 55  -44  3 20  -45 43 38  -43 50 54   0.76

    174  0  0   -45  6 35   22  3 35    34   326    29  -45 50 34  -44 23  4  -46  3 17  -44 10 39   0.76
    175  0  0   -45 26  4   22  3 37    34   325    29  -46 10  0  -44 42 35  -46 22 42  -44 30 11   0.76
    176  0  0   -45 45 19   22  3 39    33   324    29  -46 29 12  -45  1 53  -46 41 53  -44 49 30   0.76
    177  0  0   -46  4 20   22  3 41    32   323    29  -46 48 10  -45 20 58  -47  0 50  -45  8 35   0.76


Uncertainty in time = +/- 1 secs

Prediction of 2019 Jul 21.0
