ASTROMETRIC UPDATE:
OCCULTATION BY (487) VENETIA - 2011 Jun 09

[Edwin Goffin's Prediction + Finder Charts]

[Detailed Finder Charts]


Updated:   2011 APR 16, 15:24 UT

Event Rank : 71

(The event Rank is a measure of the likelihood of observing an event, and is equal to the probability of at least one successful observation by a team of two observers spaced 1/8 path width just inside opposite sides of the predicted path. An event rank of 100 indicates that the prediction is expected to be very accurate).


THE UPDATED PATH

Note: The duration given in the line below is the interval during which the occultation shadow sweeps across the Earth - please see the minute markers on the map to determine the approximate time for your location.

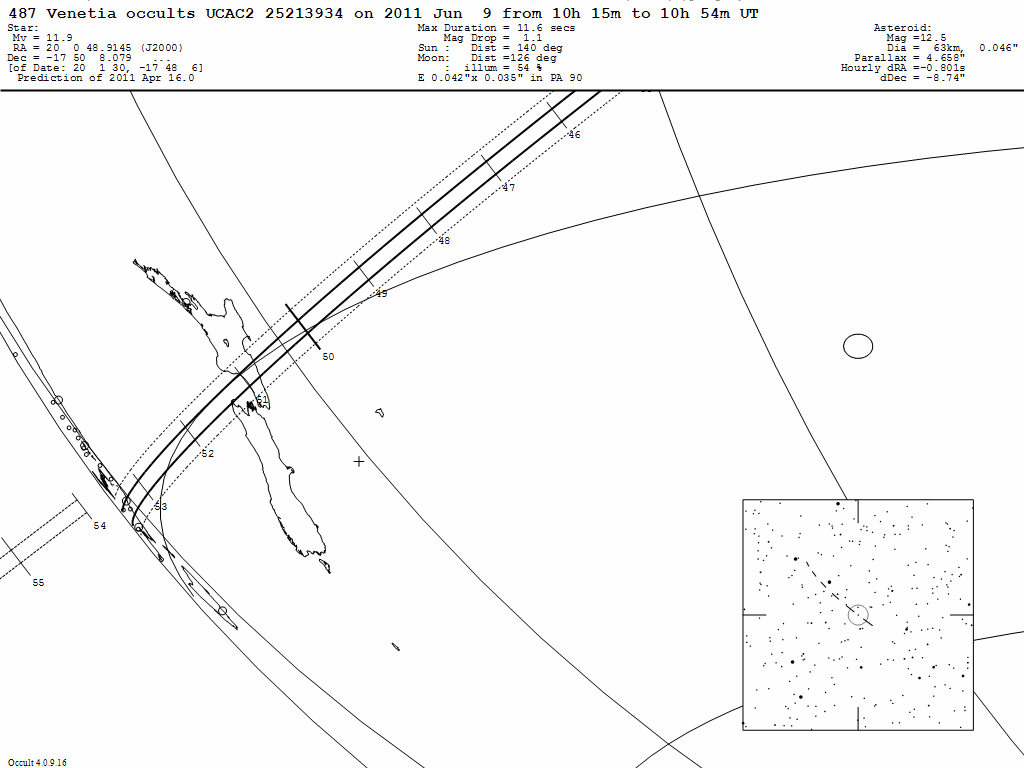

Venetia Update Map


On 2011 Jun 09 UT, the 63 km diameter asteroid (487) Venetia will occult a 11.9 mag star in the constellation Sagittarius for observers along a path across New Zealand, including the North Island from about Bulls to Masterton. It crosses the Australia coast near Eden and passes close to Melbourne, but at very low elevation.

In the case of an occultation, the combined light of the asteroid and the star will drop by 1.1 mag to 12.5 mag (the magnitude of the asteroid) for at most 11.6 seconds.

This update is based on UNSO/Flagstaff astrometry for the asteroid kindly provided by Alice Monet, historical astrometry from the MPC files (via AstDys), and the following catalogs for the star position: UCAC.

Additional details of this and other events are available at Steve Preston's website at http://www.asteroidoccultation.com/

EVENT DETAILS SUMMARY : Data for the target star : Data for the minor planet : The Occultation Path :
                   Centre              Star  Star   Sun      Path Limits           Error Limits
  E. Longitude   Latitude      U.T.    Alt    Az   Alt    Limit 1    Limit 2    Limit 3    Limit 4
      o  '  "     o  '  "    h  m  s     o     o     o    o  '  "    o  '  "    o  '  "    o  '  "
                                                         Latitude   Latitude   Latitude   Latitude
   -178  0  0   -39 52 17   10 50  4    35    84   -69  -39 35  9  -40  9 24  -39  7 25  -40 37  8
   -179  0  0   -39 57  1   10 50 12    35    85   -68  -39 39 55  -40 14  7  -39 12 12  -40 41 49
   -180  0  0   -40  1 16   10 50 21    34    85   -67  -39 44 11  -40 18 21  -39 16 30  -40 46  2
    179  0  0   -40  5  1   10 50 29    33    86   -67  -39 47 57  -40 22  5  -39 20 17  -40 49 45

    178  0  0   -40  8 17   10 50 37    32    87   -66  -39 51 13  -40 25 20  -39 23 35  -40 52 58
    177  0  0   -40 11  3   10 50 45    32    87   -66  -39 54  0  -40 28  6  -39 26 23  -40 55 43
    176  0  0   -40 13 20   10 50 53    31    88   -65  -39 56 18  -40 30 22  -39 28 41  -40 57 58
    175  0  0   -40 15  7   10 51  1    30    88   -65  -39 58  5  -40 32  9  -39 30 30  -40 59 44
    174  0  0   -40 16 25   10 51  8    29    89   -64  -39 59 24  -40 33 27  -39 31 48  -41  1  1

    173  0  0   -40 17 13   10 51 16    29    90   -63  -40  0 12  -40 34 15  -39 32 37  -41  1 49
    172  0  0   -40 17 32   10 51 23    28    90   -63  -40  0 31  -40 34 33  -39 32 56  -41  2  8
    171  0  0   -40 17 21   10 51 30    27    91   -62  -40  0 20  -40 34 23  -39 32 45  -41  1 57
    170  0  0   -40 16 41   10 51 37    26    92   -61  -39 59 39  -40 33 42  -39 32  4  -41  1 17
    169  0  0   -40 15 30   10 51 43    26    92   -61  -39 58 28  -40 32 32  -39 30 53  -41  0  7

    168  0  0   -40 13 50   10 51 50    25    93   -60  -39 56 48  -40 30 52  -39 29 11  -40 58 28
    167  0  0   -40 11 40   10 51 56    24    93   -59  -39 54 37  -40 28 42  -39 27  0  -40 56 19
    166  0  0   -40  8 59   10 52  2    23    94   -59  -39 51 56  -40 26  3  -39 24 17  -40 53 40
    165  0  0   -40  5 49   10 52  8    23    95   -58  -39 48 44  -40 22 53  -39 21  5  -40 50 32
    164  0  0   -40  2  8   10 52 14    22    95   -57  -39 45  2  -40 19 13  -39 17 21  -40 46 53

    163  0  0   -39 57 56   10 52 20    21    96   -57  -39 40 50  -40 15  2  -39 13  7  -40 42 44
    162  0  0   -39 53 14   10 52 25    20    97   -56  -39 36  6  -40 10 21  -39  8 22  -40 38  5
    161  0  0   -39 48  0   10 52 31    20    97   -55  -39 30 52  -40  5  9  -39  3  5  -40 32 55
    160  0  0   -39 42 16   10 52 36    19    98   -55  -39 25  6  -39 59 26  -38 57 17  -40 27 14
    159  0  0   -39 36  0   10 52 41    18    98   -54  -39 18 48  -39 53 12  -38 50 57  -40 21  2

    158  0  0   -39 29 13   10 52 45    17    99   -53  -39 11 59  -39 46 26  -38 44  5  -40 14 19
    157  0  0   -39 21 53   10 52 50    17   100   -53  -39  4 38  -39 39  8  -38 36 41  -40  7  5
    156  0  0   -39 14  2   10 52 54    16   100   -52  -38 56 45  -39 31 19  -38 28 44  -39 59 18
    155  0  0   -39  5 38   10 52 59    15   101   -51  -38 48 19  -39 22 57  -38 20 15  -39 51  0
    154  0  0   -38 56 41   10 53  3    14   101   -51  -38 39 20  -39 14  2  -38 11 12  -39 42  9

    153  0  0   -38 47 11   10 53  7    14   102   -50  -38 29 48  -39  4 35  -38  1 36  -39 32 45
    152  0  0   -38 37  8   10 53 10    13   103   -49  -38 19 42  -38 54 34  -37 51 27  -39 22 49
    151  0  0   -38 26 31   10 53 14    12   103   -48  -38  9  3  -38 44  0  -37 40 43  -39 12 19
    150  0  0   -38 15 21   10 53 17    11   104   -48  -37 57 49  -38 32 52  -37 29 25  -39  1 15
    149  0  0   -38  3 35   10 53 20    10   105   -47  -37 46  1  -38 21  9  -37 17 32  -38 49 37

    148  0  0   -37 51 15   10 53 23    10   105   -46  -37 33 37  -38  8 52  -37  5  3  -38 37 25
    147  0  0   -37 38 19   10 53 26     9   106   -45  -37 20 38  -37 56  0  -36 51 59  -38 24 37
    146  0  0   -37 24 48   10 53 28     8   106   -45  -37  7  4  -37 42 32  -36 38 19  -38 11 15
    145  0  0   -37 10 40   10 53 30     7   107   -44  -36 52 53  -37 28 27  -36 24  3  -37 57 16
    144  0  0   -36 55 56   10 53 32     6   108   -43  -36 38  5  -37 13 47  -36  9  9  -37 42 41

    143  0  0   -36 40 35   10 53 34     5   108   -42  -36 22 40  -36 58 29  -35 53 38  -37 27 30
    142  0  0   -36 24 36   10 53 35     5   109   -41  -36  6 37  -36 42 34  -35 37 29  -37 11 41
    141  0  0   -36  7 59   10 53 37     4   109   -41  -35 49 56  -36 26  1  -35 20 41  -36 55 15
    140  0  0   -35 50 43   10 53 38     3   110   -40  -35 32 36  -36  8 50  -35  3 15  -36 38 10
    139  0  0   -35 32 48   10 53 38     2   110   -39  -35 14 37  -35 50 59  -34 45  9  -36 20 26

    138  0  0   -35 14 14   10 53 39     1   111   -38  -34 55 58  -35 32 29  -34 26 22  -36  2  4
    137  0  0   -34 54 59   10 53 39     0   112   -37  -34 36 39  -35 13 19   .. .. ..  -35 43  1

Uncertainty in time = +/- 11 secs

Prediction of 2011 Apr 16.0
